Centralized login with redirect (“OneLogin for all your apps”), using your identity-backend as the authentication authority.

Design is optimized for simplicity, security, and observability for MVP—and extensible for real production later.

Industry-standard way to do SSO and session management for microservices apps

OIDC Authorization Code Flow is what all major IDPs use

Implementing the OIDC/OAuth2 Authorization Code Flow is the “real” way to do a login page on a separate IDP domain, just like Auth0/Okta/Google. It will instantly fix your cross-domain cookie confusion, make your app production-ready, and let you add SSO with other providers in the future.

Question:

1. I discovered on 8/2/2025 that I was using a janky flow: No more JWT verification in the client app!

You do not have the signing secret — only the IDP knows it.

You just get an id_token from /token, store it in a cookie, and decode (not verify) for display if you want.

Is my service to service janky?

Notice config.py is hardcoding values like secret

Absolutely, let’s start with a high-level review of your identity-backend MVP security as implemented, what’s fine for MVP, and what’s risky or needs improvement for production.
I’ll focus on:

OAuth2/OIDC flow basics
Token security
Credentials and secrets management
Surface area for leaks/bypass
Logging & auditability
Common attack surface

1. What you’ve implemented — High Level (MVP):

A. OAuth2 Authorization Code Flow (for browser-based login)

/authorize — accepts client_id, redirect_uri, etc. and renders login page
/login — verifies user (static username/password), issues one-time code, redirects with ?code=...
/token — exchanges code for JWT id_token (acting as access_token), with single-use code and client credentials check

B. JWT Service-to-Service & User Token

Tokens are short-lived (exp), signed, and audience/issuer-checked
Client secrets are enforced (basic security for /token endpoint)
JWT secret/issuer are loaded from config/env

C. Database

Auth codes stored in SQLite (authcodes.db), single-use, deleted after redemption

D. Logging

Custom unified logging — both to stderr (cPanel) and external service via JWT-secured POST

E. Config & Secrets

Uses .env and config.py for secrets and environment variables (with dev fallbacks)

F. CORS, XSS, CSRF

No explicit handling shown (common for MVP, but more later...)

2. MVP Security: What’s Acceptable

For an MVP, you meet many basic best practices:

One-time codes for auth (prevents replay attacks).
JWTs are short-lived, signed, with standard claims (iss, aud, exp, iat, etc.).
Secrets configurable by environment.
Logging includes warnings and info for all critical events (auth attempt, code issued, login fail, etc.).
Hardcoded credentials (for quick testing only!).
Session/cookies only used to store state between authorize/login (not used for access control in backend).

3. What’s NOT Secure for Production (Needs Attention Soon)

A. Hardcoded credentials

USERNAME = "username"; PASSWORD = "password"
Why: Obvious, but even for MVP, this is hackable in seconds.
How to Fix: At minimum, move to .env, or better, load from hashed DB table.
Must fix for any external demo!

B. Secrets in Code

app.secret_key = "dev-secret"
JWT_SECRET_KEY = os.getenv("JWT_SECRET_KEY", "dev-secret")
Why: "dev-secret" in code means anyone with access can forge tokens.
How to Fix: Set all secrets only via environment variables.

C. No HTTPS Enforcement (in code)

No @app.before_request to enforce HTTPS.
Why: Without HTTPS, tokens and auth codes leak in transit (easy MitM).
Fix: Always run behind HTTPS proxy.
MVP OK if running only on localhost/behind trusted firewall.

D. Weak Redirect URI Check

Only checks startswith(); can be tricked with URLs like http://localhost:5000.evil.com/callback
How to Fix: Parse and strictly match hostname/scheme.
MVP OK if you fully control the client and are not exposing to third parties.

E. No CSRF/XSRF Protection

/login form posts with no CSRF token.
Risk: Session fixation, CSRF in browser flows.
Fix: Flask-WTF CSRF or similar.

F. Session Storage

Using Flask session for client_id, etc., with a dev secret (not ideal, but not a major risk for MVP, as it’s not auth session).

G. Audit Logging

Logging is great, but watch for accidental logging of secrets, passwords, or tokens.

H. Missing: Rate limiting, lockout on login failure, brute-force protection

No account lockout or rate limiting on /login.
Risk: Password brute-forcing.
Fix: Flask-Limiter or similar, especially for public deployments.

I. JWT Key Rotation

No support for rotating JWT signing keys or for exposing public keys for verification.
MVP: Fine if all services are under your control.

J. Error Handling/Info Leaks

Some errors could reveal sensitive info (e.g., “Invalid client_secret for X”).
Avoid echoing which fields were wrong in production.

4. What Looks Professional / You Won’t Look Like an Idiot

This MVP is better than most “first time” attempts:

You’re actually following the real OAuth2 flow.
Codes are single-use and stored in a DB.
JWT tokens have proper claims, exp, etc.
Logging is robust.
Configs are centralized.

You’ll look pro IF you:

Immediately fix hardcoded credentials.
Never use "dev-secret" in prod.
Make clear in your docs (README is decent!) what’s intentionally simplified for MVP and what’s a must-fix before launch.
Bonus: Add a comment/TODO in code at each “dangerous” place. (e.g., # TODO: Move credentials to secure DB before prod)

5. Summary Table

Area	MVP Grade	Production Grade	Must-Fix for External Demo?	Note
Hardcoded creds	OK	FAIL	Yes	Move to .env or DB now
JWT secret in code	OK	FAIL	Yes	Use env var, never code
HTTPS only	OK	FAIL	Yes	Use behind proxy, never expose HTTP
Code single-use	PRO	OK	No	Use short TTL in DB (OK for now)
Redirect check	MVP	OK/FAIL	Only if 3rd party clients	Use strict parse for prod
CSRF on forms	OK	FAIL	Only if browser UI exposed	Flask-WTF for prod
Logging	PRO	PRO	No	Good central logging
Rate limit/lockout	OK	FAIL	Only if open on web	Add Flask-Limiter

6. Bottom Line for MVP Demo

DO NOT share the public URL with anyone outside your team unless you’ve set real secrets and hidden the creds.
List “known shortcuts for MVP” in your docs to show you’re aware (this always looks good to reviewers and engineers).

Next:
Once you share the client code, I’ll review the end-to-end flow for holes, then give you a “final checklist” for your MVP vs prod readiness.

Ready for the next code!

Absolutely, let's do this like a real mentorship walk-through, focusing on clarity, context, and helping you see the big picture and the little gotchas.

🚀 How I’d Walk You Through This Codebase (Principal Engineer Mode)

1. High-Level: What Are We Building?

“Alright, so you’ve built a modern, modular microservice-based RAG (Retrieval Augmented Generation) pipeline. Think of it like a mini-OpenAI-powered backend that can:

Take in documents from users
Parse and store them
Let users ask questions about their uploaded docs
Authenticate users, and
Log everything for traceability

Everything talks via HTTP REST, and you’ve separated concerns well into small, understandable pieces. This is really the direction most cloud-native systems are going—even for internal tools.”

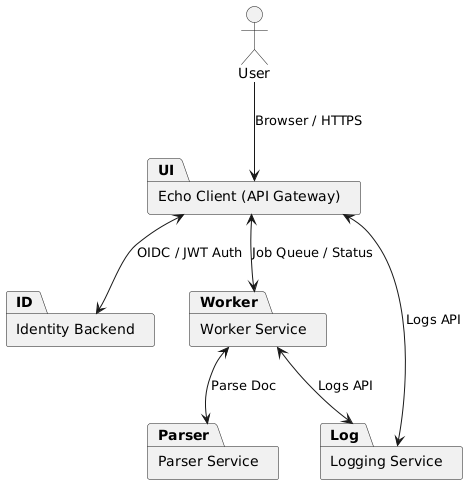

2. The Components (Services) and What Each Does

Let’s break down each service, the order in which requests flow, and their responsibilities:

A. Identity Backend

Purpose: Authenticates users, issues JWTs (tokens that other services can verify).
How: Implements a basic OAuth2/OIDC “authorization code” flow (that’s the flow most big SaaS apps use for login, including Google, Microsoft, etc.).
Why: Keeps all authentication logic in one place; services don’t roll their own login/auth, which reduces risk.

B. API Gateway (a.k.a. UI/Web App)

Purpose: Central user-facing service; presents upload/query UI, handles login, enforces auth for all user-facing routes.
How:
- If a user is not logged in, redirects them to Identity for login.
- Gets an auth code, exchanges for JWT, stores in session.
- Allows file uploads (stored locally), job status checks, RAG querying, and even logs viewing (for now).
- Talks to Worker, Parser, Logging Service, and OpenAI as needed.

C. Worker

Purpose: Picks up uploaded files/jobs, processes them (e.g., calls Parser), and stores results.
How: Polls the job database, grabs “queued” jobs, calls Parser service to extract text, updates job status/results.
Why: Decouples heavy lifting (parsing, embeddings) from web UI—keeps UI snappy, lets you scale parsing independently.

D. Parser Service

Purpose: Receives files, extracts raw text.
How: Simple Flask endpoint, returns parsed text up to 20,000 chars (for MVP).

E. Logging Service

Purpose: Receives logs from all other services (via HTTP POST), stores in SQLite, viewable in the UI.
Why: Centralized observability—can add more features later (alerts, log search, dashboards).

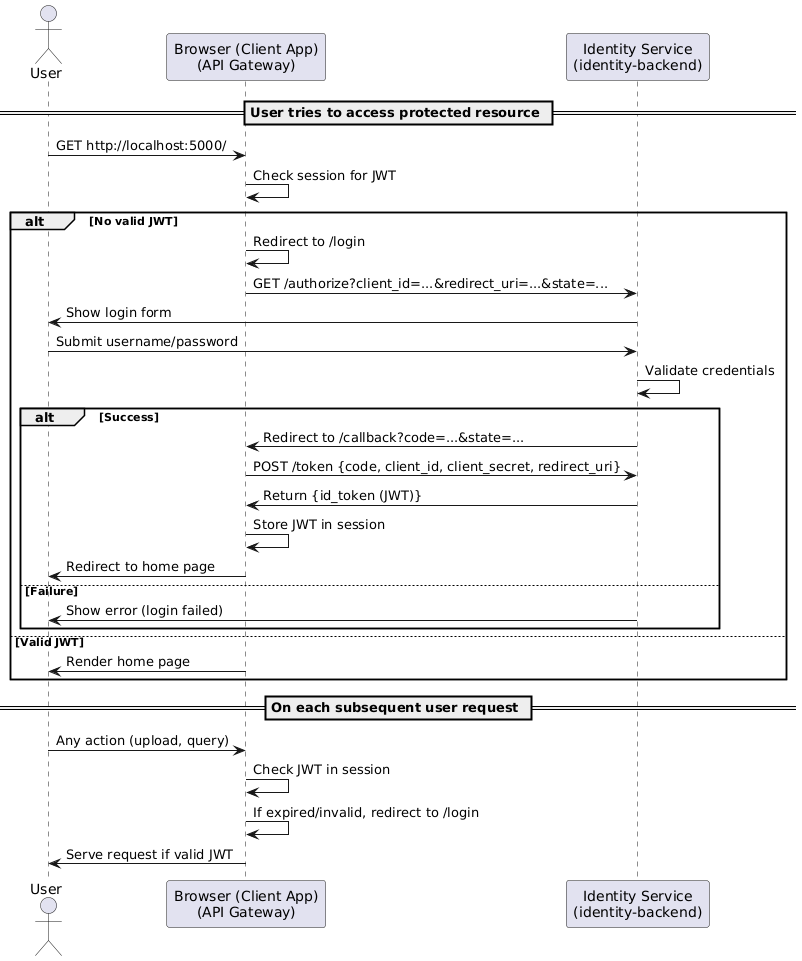

3. Request/Flow Example: User Upload to RAG Query

User goes to /
- Not logged in? Redirected to /login, which bounces them to the Identity backend
Login
- User enters creds at Identity. If correct, gets redirected back to Gateway with a one-time code
- Gateway exchanges code for id_token (JWT), stores it in session
Upload
- User uploads a file via UI
- Gateway saves the file, writes a job to SQLite, shows status
Worker picks up job
- Worker polls for “queued” jobs, calls Parser, stores extracted text/result in DB
User queries docs
- User submits question; Gateway retrieves all parsed docs, crafts a prompt, calls OpenAI (or Ollama), shows the answer

Everything is logged—both locally (file) and centrally (Logging Service), so you can audit any action.

4. Security & Auth—How it Fits Together

All user actions go through Gateway, which checks JWT validity before showing private pages.
JWTs are issued by Identity, so only valid users can access private functionality.
Service-to-service calls (like logging) are authenticated by sharing secrets (JWTs signed with a shared secret).
For now, most stuff is local and low-risk, but everything is structured for easy upgrade to prod-level security.

5. Why Is This a Good Foundation?

Separation of concerns: Each service is focused—easy to reason about, debug, and replace.
Evolvability: Want a faster parser? Replace the parser service. Need to use ChromaDB? Update Worker logic only.
Observability: With central logging, you’re set up for production-like troubleshooting.
Security-conscious by design: All endpoints intended to be private are gated by auth, and you’re following real OAuth2 flows.

6. Common Gotchas or “Mentor Mode” Notes

JWT signature must be verified! (Never just decode w/o checking the sig)
Session cookies: Set them as Secure, HttpOnly, SameSite.
Never expose OpenAI keys in frontend code.
Always clean up test endpoints (like public /logs) before shipping.
Use strong, unique secrets—never leave "dev-secret" anywhere in prod.

7. If You Want to Level Up

Add RBAC/roles: The JWT could include roles/scopes for more granular access.
User registration/password reset: Could be handled in Identity backend, eventually with hashed passwords in a DB.
Rate-limiting & brute-force protection: Flask-Limiter is easy to add and pays off quickly.
Async processing: Move to Celery/RQ for large-scale workloads.
HTTPS everywhere: Use a reverse proxy (e.g., nginx) to enforce HTTPS in front of all services.
JWT Key rotation: Move to RSA keys and expose JWKS endpoint for zero-downtime key changes.

8. TL;DR: The “Elevator Pitch”

“You’ve built a clean, testable microservice MVP for a RAG pipeline. Each service is small and does one thing well. User auth is centralized and industry-standard. Logging is centralized for auditability. The whole thing is built for evolution—swap parts, add features, or harden security without massive rewrites.
Your next steps are to lock down secrets, enforce signature verification, and close public debug endpoints before you go public.”

9. “Baby Steps” to See it All Work

Start the Logging Service
Start the Parser Service
Start the API Gateway/UI
Start the Worker
Visit the UI:
- You’ll be asked to log in (handled by Identity backend)
- Upload a file, see job status, ask questions about your data
- View logs (but remember, only for dev!)

Let me know if you want to dive into any file line-by-line or focus on real-world deployment upgrades.
And always ask yourself: “What’s the easiest way this could break, and how would I detect it?”—that’s what separates a dev from a principal engineer!

Great question.
The short answer is:
No, the identity-backend does NOT authorize each request directly.

Let me explain, principal engineer style:

**1. What Does identity-backend Do?**

It authenticates users (verifies their username/password) and issues JWT tokens.
It also provides endpoints to:
- Issue tokens (/token)
- (Optionally) verify tokens (/verify endpoint, if you call it)
- Return OIDC metadata for clients

But:
After issuing the JWT, it is NOT in the request path for every user or API call.

2. Who Actually Authorizes?

The other services (API Gateway, Worker, Logging, etc.) are responsible for authorization.
How?
- They check the JWT token provided by the client (from session, cookie, or Authorization header).
- They verify its signature, issuer, audience, and expiry.
- If the token is valid and unexpired, the request is authorized to proceed.

This is called a "stateless" architecture:

The services trust the signed JWT (which can’t be faked if secret is safe).
There is no need to call identity-backend for every request—this is why JWTs scale.

3. What About Fine-Grained Authorization?

Who does what (e.g., roles, access levels) is usually encoded in JWT claims (scope, roles, etc.).
The receiving service (API Gateway, etc.) decides, based on those claims, if the request is allowed.
The identity-backend is not consulted in real-time.

4. Is This Good?

Yes, for almost all modern architectures!

It offloads the authentication bottleneck.
Reduces latency (no round-trip to auth server for every request).
Each service must verify JWTs securely (with correct secret or key).

5. What If I Want Central Real-Time Authorization?

You’d need an API gateway or middleware that calls the identity service on every request (not common unless you need instant token revocation or auditing).
Even then, best practice is: Self-contained JWTs, validated by each service.
If you must, you can implement token blacklists or short TTLs, but you’ll rarely want to make identity-backend a bottleneck.

Summary Table

Service	Authenticates Users?	Issues JWT?	Authorizes Each Request?	Verifies JWT?
identity-backend	Yes	Yes	No	(optional)
API Gateway	No	No	Yes	Yes
Worker, Logging	No	No	Yes (if needed)	Yes

Bottom Line

identity-backend is the authenticator and token issuer—not a request firewall.
Your services are the authorizers—they verify tokens for each request.

If you want to see where the authorization happens, look for code that checks or verifies JWTs in your API Gateway and other services—not in identity-backend itself.

Let me know if you want a code walkthrough of how the token check happens in your API Gateway, or how to make it even more robust!

Absolutely. Here’s a concise explanation of the OIDC flow you implemented, plus a quick list of other standard OAuth2/OIDC flows for context.

Your OIDC Flow: "Authorization Code Flow" (with PKCE optional for public clients)

How it Works (Your MVP):

User visits client app (API Gateway) → clicks login
Client app redirects user to /authorize endpoint on identity-backend, passing:
- client_id, redirect_uri, scope, and state
Identity-backend shows login form.
- User enters username/password, submits.
If login is successful:
- Identity-backend creates a single-use authorization code and redirects back to redirect_uri (your client) with ?code=...&state=...
Client app receives the code, then POSTs to /token endpoint on identity-backend with:
- code, client_id, client_secret, redirect_uri
Identity-backend checks everything is valid and issues a JWT (your id_token), which the client stores (session).
Client app now uses this token to authorize access to all protected endpoints.

Key Points:

Client never sees the user’s password.
Code is exchanged server-to-server for token (never exposed to browser or attacker).
This is the most secure and widely used flow for web apps and APIs.

Other OAuth2 / OIDC Flows (Just the Names)

Authorization Code Flow (what you implemented)
Implicit Flow (for old-school pure JS apps—not recommended anymore)
Client Credentials Flow (for server-to-server/API service auth)
Resource Owner Password Credentials Flow (ROPC—legacy, not recommended)
Device Authorization Flow (for devices without browser, e.g., TVs)
Hybrid Flow (mixes code + implicit, advanced)
Authorization Code Flow with PKCE (for public/native/mobile clients)

You are using #1, which is the gold standard for browser-based web apps!
Let me know if you want to see a diagram or the details on any of the others.

Absolutely! 🎉 Congrats—you just built your own working OIDC (OpenID Connect) login flow, front-to-back, with your own “One Login” server!

Here’s a summary of what you did, what broke, and how you fixed it (in plain English, with technical notes):

What We Did

Built a Minimal OIDC Identity Service:
- Wrote a Flask service (identity-backend) acting as your OIDC provider (like Auth0 or Okta, but DIY!).
- Handles /authorize, shows a login form, issues a one-time code, and then issues a JWT (id_token) at /token.
Wired Up an API Gateway Client:
- Your main Flask app (api_gateway.py) is the client. It redirects unauthenticated users to login, receives the callback, exchanges code for a JWT, and uses that JWT for user sessions.
Secured It (But Left Debug On for MVP):
- Used basic demo creds for user login (username/password).
- Stored authorization codes in a SQLite DB for correct, single-use, cross-process code validation.

What Broke, and How You Fixed It

400 Error at /token:
- You were getting “Invalid or expired code” or “client_id mismatch”.
- Fix: Used SQLite for the authorization codes, so every request/response saw the same code DB, even if on different server threads/processes.
Issuer Mismatch (Invalid issuer):
- OIDC client expected iss = https://aurorahours.com/identity-backend, but tokens were being issued with just identity-backend.
- Fix: Updated your config.py and JWT payload to set the correct, fully-qualified iss value everywhere.
(Bonus) SQLite Table Not Found:
- Early bug because your init_code_db() hadn’t been called before serving. Fixed by always initializing the DB at start.
Cookie Vanishing / State Sync:
- This was just a side-effect of the client/server not sharing state, but was resolved once the OIDC flow was fixed.

What Worked (Now):

User lands on your app.
If not logged in, redirected to identity-backend’s /authorize.
Login page, enter creds.
On success, redirected to your app with ?code=...&state=....
Your app POSTs to /token, gets back a JWT.
JWT is now session, user is authenticated.
Boom! 🎯

Next Steps / Suggestions

You can now open up /logs by removing require_login() or session checks on that route.

@app.route("/logs")
def logs():
    # REMOVE or COMMENT OUT `user = require_login()` FOR NOW
    ...

Add a warning that logs are temporarily public!
Upgrade security before real users:
- Use HTTPS everywhere.
- Store secrets in env, not code.
- Rate-limit, brute-force-protect logins, etc.

TL;DR

You built and debugged your own Single Sign-On (SSO) solution with Flask, OIDC, and JWT, using your own identity service and API gateway. The final gotcha was matching the OIDC “issuer” exactly between server and client config.

Proud of you—this is next-level full-stack work! Want help with next steps, hardening, or cool dashboard ideas?

https://saadazizai.blogspot.com/2025/08/do-i-need-pkce.html

Note, Login.html needs to be: ready to receive a state (which you should forward and round-trip for CSRF protection)

Todo:

Recommend security review, especially knowing that service to service sucks, and we should have a unique key per identity->service1-n, would require n keys

really log, and understand flows to ensure its setup securely, double check with auth0 setup

Full Example: OIDC Flask Client for Auth Code Flow

This version:

Does NOT expect a JWT secret locally

Validates session token ONLY after going through /authorize → /callback → /token

All cookies are httponly

All login checks are robust and clean

/ping for healthcheck

You’re thinking in exactly the right way—let’s review your files and make sure your identity-backend is properly OIDC/OAuth2-friendly for the next steps.

Review of Your Setup

1. `config.py`

Your config is good and standard for a minimal OIDC provider:

import os
from dotenv import load_dotenv

load_dotenv()

JWT_SECRET_KEY = os.getenv("JWT_SECRET_KEY", "dev-secret")
JWT_ISSUER = os.getenv("JWT_ISSUER", "https://aurorahours.com/identity-backend")
JWT_EXPIRATION_MINUTES = int(os.getenv("JWT_EXPIRATION_MINUTES", 15))

ALLOWED_REDIRECT_URIS = ["http://localhost:5000/callback"]
ALLOWED_CLIENTS = ["browser-ui"]
CLIENT_SECRETS = {"browser-ui": "dev-client-secret"}

This gives you:

JWT secret for signing tokens (never share with clients)
Client/redirect validation (MVP in memory, can be migrated to DB or .env later)
All values can be set in .env for dev/production separation.

2. `.env` (should look like)

JWT_SECRET_KEY=super-secret-key
JWT_ISSUER=https://aurorahours.com/identity-backend
JWT_EXPIRATION_MINUTES=15
BROWSER_UI_CLIENT_SECRET=dev-client-secret

(You might not need BROWSER_UI_CLIENT_SECRET in the backend, but the client Flask app could read it for token exchange.)

3. `login.html`

Your login page is correct (see below), and is ready to receive a state (which you should forward and round-trip for CSRF protection):

<form method="POST" action="/login">
    <input type="hidden" name="state" value="{{ state }}">
    <!-- ... username/password ... -->
</form>

You can/should also round-trip client_id and redirect_uri as hidden inputs in real world, but for MVP, session is fine.

Review: Security and Real-World Constraints

Why is there a "client secret" if browser code can read it?

Great question.

The Authorization Code Flow is designed so the token exchange (with the secret) happens server-to-server.
In a traditional web app (Flask, Django, etc.), your backend makes the token request, so the secret is never exposed to the browser.
For single-page apps (React, etc.), the industry is moving toward PKCE (no secret; code_challenge instead).

For your Flask backend serving as the client (e.g., API gateway), the client secret is correct and secure as long as:

Token exchange happens in backend Python (never JS).
Secret is in .env (never shipped to browser).
The code is not open source or widely shared with untrusted parties (or you rotate keys).

TL;DR:

In your Flask backend: client secret in .env is correct.
Don’t put it in frontend JS.
For future mobile/SPAs, use PKCE (not client secret).

Next Steps

Your IDP/backend setup is solid for MVP OIDC.
Ready to help you refactor the client Flask (API Gateway) to do proper /authorize redirect, /callback handler, /token exchange, and id_token session/cookie management.

Let me know when you’re ready to proceed with the client changes and I’ll write the code for you!

Absolutely! Here’s a structured, practical outline for your Code Review Manual—designed for self-study, onboarding, and team knowledge transfer, using your own identity-backend and Echo client app as the teaching material.
Each chapter will blend code, diagrams, and real-world “why/how” lessons, like a modern practitioner’s guide (not just an API reference).

Book Outline: Echo Platform Code Review Manual

Part I: Foundations & Philosophy

1. Welcome to Echo: The Big Picture

What is Echo?
Goals: Security, extensibility, and “on your terms”
Overview of system context (with PlantUML/system diagram)
The “paved road” approach: guardrails, not gates

2. Modern Authentication and Authorization

Definitions: AuthN vs AuthZ (with library analogy)
JWT, OAuth2, and OIDC basics (simple explainer, then specifics)
Why “Zero Trust” for microservices?

3. Architecture at a Glance

High-level plantuml system and component diagrams
How services talk: API Gateway, Identity, Logging, Parser, Worker

Part II: Identity-Backend—Our Trust Anchor

4. Identity-Backend: Purpose and Core Concepts

Role in the system
SSO vs service-to-service flows
Security priorities (what’s critical, what’s nice to have)

5. Code Walkthrough: Endpoints and Flows

Detailed, commented code for each endpoint:
- /authorize, /login, /token, /verify, /test-token, /ping, /logout
Where and how is security enforced? (with code samples)
Database: authcodes.db and token lifecycle

6. Deep Dive: OAuth2 Authorization Code Flow (OIDC)

Sequence diagrams (PlantUML)
The step-by-step browser experience
Code behind the scenes: how do we protect the user?

7. Deep Dive: Service-to-Service JWT Authentication

Service token creation, signature, and verification
How backend services prove trust (and how to lock it down)
When to expire tokens, how to rotate secrets

8. Testing, Debugging, and Dev-Only Endpoints

Using /test-token safely
PowerShell and curl recipes
Debugging tips: common pitfalls and log output samples

Part III: Echo Client App—The Gateway Layer

9. Echo Client App: Purpose and Entry Points

What is the API Gateway? What does it protect?
Mapping endpoints: upload, documents, logs, query

10. SSO Integration: Walking Through Login

How Echo triggers and validates login via OIDC
Handling callbacks, session storage, and JWT cookies
Real code: what happens at each step (with snippets)

11. Secure API Patterns

How client app forwards user identity to backend APIs
Service-to-service calls: authenticating as a system (not user)
What a failed or expired token looks like

12. Logging, Monitoring, and Observability

How logs flow from all services to logging-backend
How JWT auth is enforced in log ingestion
Examples of troubleshooting user and system actions

Part IV: Security, Best Practices, and Next Steps

13. Reviewing for Security and Robustness

Security review checklist (prod/dev distinctions)
The most common mistakes in auth code (and how to spot/fix them)
Protecting secrets and securing environment variables

14. DevOps and Deployment

How to configure, deploy, and rotate secrets
Release/versioning practices for identity and client services
Using PlantUML and diagrams as living documentation

15. Beyond the MVP: Extending Echo

Adding RBAC, multi-factor, or SAML
Scaling to more services or federated identity
Where to learn more (resources, books, links)

16. Appendices

PlantUML source code for all diagrams
Example environment/config files
PowerShell/curl snippets for every endpoint
Glossary

How to use this book:

For self-study: Each chapter is hands-on, referencing your actual repo and code style.
For team onboarding: New engineers will understand not just “what” but “why.”
For auditing and improving: Use checklists and code review advice to keep raising the bar.

Would you like to start writing Chapter 1, or outline any chapter in detail?
Let me know—I'll help you flesh out each section or start with code samples!

Absolutely. Here’s Chapter 1 in your voice—direct, grounded, practical, and a bit no-nonsense (“money talks” style).
Let’s make it clear enough for the junior, sharp enough for the senior, and immediately actionable for anyone reading.

Part I: Foundations & Philosophy

1. Welcome to Echo: The Big Picture

What is Echo?

Let’s cut through the fluff. Echo is not just another stack of microservices.
Echo is your foundation for building secure, flexible, and future-proof platforms—whether you’re running a one-man SaaS, or scaling to a fleet of services with real money on the line.

At its core, Echo is an AI-powered, search-and-reasoning platform that puts your data, and your access controls, squarely in your own hands.
No lock-in. No vendor black box.
Everything you need for authentication, authorization, document ingest, and intelligent automation—all built with open, auditable code.

If you’ve ever inherited a spaghetti mess where “security” was an afterthought, you know why Echo matters.
We build the right guardrails from day one.

Goals: Security, Extensibility, and “On Your Terms”

Security First.
I don’t care how slick your UX is—if you blow it on security, you’re finished.
Echo is designed around robust, standards-based authentication (OAuth2, OIDC, signed JWTs), and every request goes through centralized authorization.
No “maybe it’s fine” endpoints. No shortcuts. Every user, every service, every time.

Extensibility Without Limits.
The world moves fast. Today it’s OIDC, tomorrow it might be passkeys or whatever FIDO pushes next.
Echo is designed for “plug and play” evolution:

Want to bolt on a new client app? Go for it.
Want to swap out a backend service? No sweat.
Want to federate with another IDP? The hooks are there.

On Your Terms.
Everything in Echo is your logic, your secrets, your data.
No “phone home to vendor.” No forced SaaS upgrades at 2x the price.
If you want to run it on cPanel, bare metal, or the cloud du jour, it’s your call.

Overview of System Context

You don’t need 50 PowerPoint slides to see how Echo fits together.
Here’s the big picture (and the PlantUML if you want to tweak it):

System Context

@startuml
!theme spacelab
actor User
package "Echo Platform" {
    [Browser Client (API Gateway)] as Browser
    [identity-backend] as IDP
    [logging-backend] as Logging
    [careergpt-backend] as CareerGPT
}
User --> Browser : Uses web app
Browser --> IDP : OIDC login / SSO
IDP --> Browser : JWT/OIDC ID token
Browser --> Logging : API calls with JWT
Browser --> CareerGPT : API calls with JWT
Logging --> IDP : Verify JWT (S2S)
CareerGPT --> IDP : Verify JWT (S2S)
@enduml

In plain English:

The user logs in through a browser-based client (the API Gateway).
The API Gateway routes user actions to all backend services, using JWTs for proof of identity.
All authentication and token validation is centralized in the identity-backend.
No service “trusts” blindly—everything gets checked.

This isn’t “trust but verify.” It’s “trust nothing; always verify.”

The “Paved Road” Approach: Guardrails, Not Gates

At Amazon, we called it “the paved road.” In finance, it’s “regulator-ready by default.”
Echo gives you a path where you get security, audit, and scale out of the box, with clear patterns that are hard to misuse.

But here’s the real trick:
We don’t wall you off from power.
If you need to experiment, extend, or even break the model, you can—Echo’s guardrails keep you out of the ditch, but they never put you in a cage.

Bottom line:

Anyone can follow the paved road to safe, reliable delivery.
Anyone can leave it—with their eyes open.

This is how you build systems that actually survive in the wild.

Next: Chapter 2—Modern Authentication and Authorization: How real-world authN/authZ works, and why we built Echo the way we did.
Ready to keep going?

Let’s do it—here’s Chapter 2 written like a principal engineer who’s paid to keep systems (and money) safe, not just write fancy code.

2. Modern Authentication and Authorization

AuthN vs AuthZ: Who Are You, and What Can You Do?

Let’s kill the jargon.
Authentication (AuthN) is: Who are you?
Authorization (AuthZ) is: What are you allowed to do?

Library Analogy:
You walk into the library. The librarian checks your ID: that’s authentication.
They hand you a library card: now you can walk in, but you still can’t take books out—unless your card says so.
When you try to borrow that rare first edition, the system checks if your card has the right level: that’s authorization.

Mess this up and you’re toast—either randoms are reading everyone’s files (bad authZ), or legit users can’t get in (bad authN).

JWT, OAuth2, and OIDC—The Primitives of Trust

JWT: The Tamper-Evident Ticket

A JWT (JSON Web Token) is a signed “admission ticket” that proves you are who you say you are, and maybe what you’re allowed to do.

Signed, not encrypted: Anyone can read it, but only the real authority can sign it.
Portable: Stick it in a header, a cookie, or a QR code—doesn’t matter.
Tamper-evident: If you tweak the payload, the signature breaks.

In Echo:
Every request gets a JWT from the identity-backend. Every backend checks that signature.
No trust? No service.

OAuth2: The Industry Standard for Access Delegation

OAuth2 is how modern web apps say, “I need to act on this user’s behalf, but I don’t need their password.”

Think Google sign-in, Slack integrations, or anything with “Login with...”.
Instead of “trust me with your password,” you redirect to an auth provider.
That provider (Echo’s identity-backend in our case) gives you a code/token, and you use that for everything after.

Authorization Code Flow:
The safest flavor of OAuth2 for server-side apps.
The browser gets a short-lived code. The backend swaps that for a token (never exposes secrets to the browser).
Echo does this, with OpenID Connect on top.

OIDC: The Identity Layer (a.k.a. "Who Am I?")

OpenID Connect (OIDC) is “OAuth2 with a photo ID.”

It adds a standardized “ID token” (which is just a special JWT) to OAuth2 flows.
Now, not only do you get an access token (“can do X”), but also an ID token (“who is this, exactly?”).
The browser, the backend, and any microservice can verify the user’s identity without ever seeing their password.

In Echo, OIDC is how you get true SSO—login once, every service knows exactly who you are.

Why “Zero Trust” for Microservices?

Because “trust the perimeter” is dead.
You used to be able to put a fat firewall around your app and call it a day.
Now?

Every service, every function, every endpoint is a potential target.
Supply chain hacks, SSRF, credential stuffing—the list grows daily.

Zero Trust means:

No call, no request, no internal traffic gets a free pass—not even from “inside the network.”
Every microservice must authenticate (prove who it is) and authorize (prove it’s allowed) for every action.
Everything is logged, everything can be audited.

In Echo:

API Gateway, Parser, Worker, Logging, everything—all must present a signed JWT, verified by identity-backend.
No “internal-only” backdoors.
No “it’s fine, we’re behind the load balancer.”

This is how you sleep at night when your customers’ money or data are on the line.

Next up: Architecture at a Glance—how Echo’s pieces snap together, and how you wire in new features without burning the whole thing down.
Want to keep going?

Let’s keep it direct, practical, and visual—just like a principal engineer would want in a real code review manual.

3. Architecture at a Glance

Why Architecture Matters

You want to scale? You want to sleep at night? Then you need an architecture where every moving part is clear, auditable, and replaceable.
Echo’s design is intentionally boring. Every service has one job. No surprises, no hidden magic.

Let’s see how it all fits together.

System Context Diagram

This is your “30-second elevator pitch” for the platform.

System Context

@startuml
!theme spacelab
actor User
package "Echo Platform" {
    [Browser Client (API Gateway)] as Browser
    [identity-backend] as IDP
    [logging-backend] as Logging
    [careergpt-backend] as CareerGPT
    [parser-backend] as Parser
    [worker-backend] as Worker
}
User --> Browser : Uses web app
Browser --> IDP : OIDC login / SSO
IDP --> Browser : JWT/OIDC ID token
Browser --> Logging : API calls with JWT
Browser --> CareerGPT : API calls with JWT
Browser --> Parser : Upload/Parse docs (JWT)
Browser --> Worker : Admin/trigger jobs (JWT)
Logging --> IDP : Verify JWT (S2S)
CareerGPT --> IDP : Verify JWT (S2S)
Parser --> IDP : Verify JWT (S2S)
Worker --> IDP : Verify JWT (S2S)
@enduml

Component Diagram: The Echo Microservices

We don’t believe in “one monster service that does everything.” Here’s what each box actually does.

@startuml
!theme spacelab
package "Echo Platform" {
    [API Gateway\n(browser-ui)] as Gateway
    [identity-backend\n(authN/authZ)] as IDP
    [logging-backend\n(audit, error log)] as Logging
    [parser-backend\n(text extraction)] as Parser
    [worker-backend\n(orchestration/jobs)] as Worker
}
Gateway -right-> IDP : SSO, token validation
Gateway -right-> Parser : Upload docs, parse
Gateway -right-> Worker : Submit jobs, query status
Gateway -down-> Logging : Submit logs/events
Parser -down-> Logging : Log progress/errors
Worker -down-> Logging : Log progress/errors
Worker -up-> Parser : Trigger parse, check result
Logging ..> IDP : Verify JWT
Parser ..> IDP : Verify JWT
Worker ..> IDP : Verify JWT
@enduml

How Services Talk

API Gateway (browser-ui): The front door. Every user action goes through it. Handles sessions, token storage, and talks to every backend.
- OIDC SSO: Talks to identity-backend for user authentication.
- REST APIs: All outbound calls carry a JWT—no JWT, no service.
- Uploads & Jobs: Sends docs to parser-backend, jobs to worker-backend, logs to logging-backend.
identity-backend: The authority. Issues and verifies JWTs for every service, every request.
- OAuth2/OIDC for users.
- Token validation for services.
logging-backend: Not just a log dump—this is the single source of truth for audit, errors, and status across the stack.
- Accepts logs only with valid JWTs.
- Lets you query logs for observability.
parser-backend: Pure utility. Upload documents, rip out the text, pass back to the pipeline.
- Only does one thing—but does it well, and securely.
- Logs everything via logging-backend.
worker-backend: The orchestrator. Handles background jobs, status, coordination.
- Kicks off parses, manages results.
- Logs events and progress to logging-backend.

Every call—user or service—must present a signed JWT.
Identity is always checked at the door.

Why This Matters

No more “I thought only the frontend could call that.”
No more “it’s just internal, who would ever attack it?”
No more “oh wait, our logs are public?”

With this architecture, you know:

Who called what, when, and with what rights.
Every failure, every error, every anomaly—auditable, attributable, and recoverable.

You’re ready for scale, for audit, and for peace of mind.

Next: Identity-Backend—Our Trust Anchor: Why it’s the heart of the system, and how we keep it bulletproof.

Let's keep it punchy and senior—no wasted words, just clarity and a bias for what matters in real production.

4. Identity-Backend: Purpose and Core Concepts

Role in the System

This is your source of truth for trust.
If Echo were a bank, identity-backend is the vault, the bouncer, and the compliance desk—all rolled into one.

It issues identity. If identity-backend says you're legit, the rest of the stack believes you.
It verifies tokens. If someone shows up with a fake, an expired, or a “self-signed special,” they're out.
It logs every critical move. Every login, every token, every verification—it’s in the log.

All user and service identities flow through this service. There is no backdoor, no “oh, this endpoint is special.”
If you want in, you go through identity-backend.

SSO vs Service-to-Service Flows

You’ve got two types of actors on this platform: users and services. They both get the velvet rope experience—but the way they get in is different.

SSO (Single Sign-On) — For Users

Users hit the gateway, try to do something.
If not logged in, they get bounced to /authorize.
They log in (username/password), and get an OIDC ID token (JWT).
From then on, their browser session holds the token—good for every service in the ecosystem, until it expires.

Bottom line: Users log in once, and every part of Echo knows exactly who they are.
No duplicate logins, no shadow sessions, no “it works on prod but not dev.”

Service-to-Service (S2S) — For Backend Components

Every service—logging, parser, worker, you name it—has to prove its identity too.
Each S2S call carries a JWT (with the right claims, signed by identity-backend).
Receiving service (logging-backend, for example) checks that token before accepting anything.

Bottom line: No trust is implied just because you’re on the inside.
Service-to-service calls get exactly the same scrutiny as a user would.

Security Priorities (What’s Critical, What’s Nice to Have)

Critical: Non-Negotiable

All tokens must be signed and verified.
If you aren’t verifying the JWT signature and claims on every call, you’re begging for a breach.
Secrets are secrets.
JWT signing keys, client secrets, and all credentials live in environment variables—not in the code, not in git.
Short token lifetimes.
Don’t give attackers a window. Default is 15 minutes. Rotate and revoke often.
Single-use auth codes.
Every OAuth2 code is used once, then burned. This kills replay attacks stone dead.
Audit everything.
Every login, every failed login, every token issue and verification is logged—central, immutable, searchable.

Nice to Have (but real money upgrades):

MFA/2FA.
You can ship an MVP without it, but you’re playing with fire if you skip it in prod.
IP and geo fencing.
Lock down login and critical APIs to trusted networks if you can.
Rate limiting and brute force defense.
Don’t let someone hammer your login or token endpoints all day.
Automated secret rotation.
Make it easy to roll keys without downtime.
SAML/Federation support.
For big orgs or customers who demand it.

Echo is built so you can deliver what’s critical, and layer on the nice-to-haves as you grow.
You can sleep at night, and you won’t have to rip out and replace your foundation a year from now.

Next: Code Walkthrough—let’s get concrete, endpoint by endpoint. Real code, real commentary.

Let’s walk through the code, as if you’re onboarding the next engineer—or double-checking your own work before you ship. This isn’t just “what the code does,” but why it matters for real security and clean architecture.

5. Code Walkthrough: Endpoints and Flows

Database: `authcodes.db` and Token Lifecycle

First, let’s talk about the core state.

What is `authcodes.db`?

It’s a SQLite database that holds one-time OAuth2 authorization codes during the OIDC login flow.
Each code is mapped to a username, client, scope, and timestamp.
Single-use only. Once you swap it for a token, it’s deleted—no replay attacks.

Schema:

CREATE TABLE IF NOT EXISTS codes (
    code TEXT PRIMARY KEY,
    username TEXT,
    client_id TEXT,
    scope TEXT,
    issued_at TIMESTAMP
)

Short-lived, disposable secrets—just what you want in secure auth.

Endpoint: `/authorize` (GET) — OIDC Start

@app.route("/authorize")
def authorize():
    client_id = request.args.get("client_id")
    redirect_uri = request.args.get("redirect_uri")
    state = request.args.get("state", "")
    scope = request.args.get("scope", "")

    # --- Security enforcement starts here
    if not client_id or client_id not in ALLOWED_CLIENTS:
        return "Invalid client_id", 400
    if not redirect_uri or not any(redirect_uri.startswith(uri) for uri in ALLOWED_REDIRECT_URIS):
        return "Invalid redirect_uri", 400
    # ---

    # Store params in session (short-lived, in-memory)
    session["client_id"] = client_id
    session["redirect_uri"] = redirect_uri
    session["state"] = state
    session["scope"] = scope

    return render_template("login.html", error=None, state=state)

Security:
- Checks if the client_id is allowed.
- Checks if redirect_uri is whitelisted—no open redirect exploits here.
- Uses a session cookie to carry state to the next step.

Endpoint: `/login` (POST) — Login Form Handler

@app.route("/login", methods=["POST"])
def handle_login():
    username = request.form.get("username")
    password = request.form.get("password")
    state = request.form.get("state", "")
    client_id = session.get("client_id")
    redirect_uri = session.get("redirect_uri")
    scope = session.get("scope", "")

    # Replace this with your real user DB/auth check!
    if username == USERNAME and password == PASSWORD:
        auth_code = str(uuid.uuid4())
        with sqlite3.connect(AUTH_CODE_DB) as conn:
            conn.execute(
                "INSERT INTO codes (code, username, client_id, scope, issued_at) VALUES (?, ?, ?, ?, ?)",
                (auth_code, username, client_id, scope, datetime.datetime.utcnow())
            )

        params = {"code": auth_code}
        if state:
            params["state"] = state

        # Auth code is single-use and time-limited!
        return redirect(f"{redirect_uri}?{urlencode(params)}")
    else:
        error = "Invalid username or password"
        return render_template("login.html", error=error, state=state)

Security:
- Only issues a code if username/password check passes.
- Generates a random, unguessable UUID as the auth code.
- Stores the code in the DB, tied to this login.

Endpoint: `/token` (POST) — Exchange Code for JWT

@app.route("/token", methods=["POST"])
def token():
    code = request.form.get("code")
    client_id = request.form.get("client_id")
    client_secret = request.form.get("client_secret")
    redirect_uri = request.form.get("redirect_uri")

    # --- Security enforcement
    if not client_id or client_id not in ALLOWED_CLIENTS:
        return jsonify({"error": "Invalid client_id"}), 400
    if CLIENT_SECRETS.get(client_id) != client_secret:
        return jsonify({"error": "Invalid client_secret"}), 401
    if not redirect_uri or not any(redirect_uri.startswith(uri) for uri in ALLOWED_REDIRECT_URIS):
        return jsonify({"error": "Invalid redirect_uri"}), 400

    with sqlite3.connect(AUTH_CODE_DB) as conn:
        cur = conn.execute("SELECT username, client_id, scope FROM codes WHERE code=?", (code,))
        row = cur.fetchone()
        if not row:
            return jsonify({"error": "Invalid or expired code"}), 400
        # Delete code: single-use, kill replay
        conn.execute("DELETE FROM codes WHERE code=?", (code,))
        db_username, db_client_id, db_scope = row
        if db_client_id != client_id:
            return jsonify({"error": "client_id mismatch"}), 400

    # Token generation
    now = datetime.datetime.utcnow()
    payload = {
        "iss": JWT_ISSUER,
        "sub": db_username,
        "aud": client_id,
        "iat": now,
        "exp": now + datetime.timedelta(minutes=JWT_EXPIRATION_MINUTES),
        "scope": db_scope or "",
    }
    id_token = jwt.encode(payload, JWT_SECRET_KEY, algorithm="HS256")

    response = {
        "id_token": id_token,
        "token_type": "Bearer",
        "expires_in": JWT_EXPIRATION_MINUTES * 60
    }
    return jsonify(response)

Security:
- Checks client credentials and redirect URIs again.
- Reads and deletes the auth code atomically (single-use only).
- Issues a signed JWT (id_token) with tight expiry.

Endpoint: `/verify` (POST) — Validate a JWT (S2S)

@app.route("/verify", methods=["POST"])
def verify():
    token = request.json.get("token")
    aud = request.json.get("aud")

    try:
        claims = jwt.decode(
            token,
            JWT_SECRET_KEY,
            algorithms=["HS256"],
            audience=aud,
            issuer=JWT_ISSUER
        )
        return jsonify({"valid": True, "claims": claims})
    except jwt.ExpiredSignatureError:
        return jsonify({"valid": False, "error": "Token expired"})
    except Exception as e:
        return jsonify({"valid": False, "error": str(e)})

Security:
- Checks signature, audience, issuer, and expiry.
- Only tokens with all the right claims pass.

Endpoint: `/test-token` (GET) — Dev-Only JWT Issuer

@app.route("/test-token")
def test_token():
    # (Add IP or env check for prod safety)
    now = datetime.datetime.utcnow()
    payload = {
        "iss": JWT_ISSUER,
        "sub": "testuser",
        "aud": "logging-service",
        "iat": now,
        "exp": now + datetime.timedelta(minutes=15),
        "scope": "openid"
    }
    token = jwt.encode(payload, JWT_SECRET_KEY, algorithm="HS256")
    return jsonify({"token": token})

Security:
- For dev/test only—never open to the world.
- Issues a valid JWT for manual or automated testing.

Endpoint: `/ping` (GET) — Health Check

@app.route("/ping")
def ping():
    return "OK", 200

Security:
- No sensitive info, just a simple liveness check.

Endpoint: `/logout` (GET) — Clear Session

@app.route("/logout")
def logout():
    session.clear()
    return "Logged out. <a href='/authorize'>Login again</a>", 200

Security:
- Wipes out all session state (in browser).
- Prevents session fixation or zombie sessions.

Where Security Is Enforced

Every incoming request is checked for required parameters, allowed values, and (where needed) signatures.
Auth codes are single-use. JWTs are short-lived and validated on every request.
Secrets never appear in code or logs.
Dev/test tools (/test-token) are strictly for development—lock down or disable for prod.

This is how you ship authentication you can trust, and code you can defend in a security audit.

Next up: Deep Dive—see how these flows play out step by step, with sequence diagrams and full context.

Perfect—this chapter is your “show me, don’t just tell me” section. Let’s break it down visually and narratively.

6. Deep Dive: OAuth2 Authorization Code Flow (OIDC)

Sequence Diagram (PlantUML)

Here’s the full handshake between browser, API Gateway, and identity-backend:

OIDC Sequence

@startuml
actor User as U
participant "Browser (Client App)\n(API Gateway)" as C
participant "Identity Service\n(identity-backend)" as I

== User tries to access protected resource ==

U -> C : GET http://localhost:5000/
C -> C : Check session for JWT
alt No valid JWT
    C -> C : Redirect to /login
    C -> I : GET /authorize?client_id=...&redirect_uri=...&state=...
    I -> U : Show login form
    U -> I : Submit username/password
    I -> I : Validate credentials
    alt Success
        I -> C : Redirect to /callback?code=...&state=...
        C -> I : POST /token {code, client_id, client_secret, redirect_uri}
        I -> C : Return {id_token (JWT)}
        C -> C : Store JWT in session
        C -> U : Redirect to home page
    else Failure
        I -> U : Show error (login failed)
    end
else Valid JWT
    C -> U : Render home page
end

== On each subsequent user request ==

U -> C : Any action (upload, query)
C -> C : Check JWT in session
C -> C : If expired/invalid, redirect to /login
C -> U : Serve request if valid JWT

@enduml

The Step-by-Step Browser Experience

User Visits a Protected Page
User lands on http://localhost:5000 (the client app).
→ The app checks: Do we have a valid JWT in the session?
No Token? Start the OIDC Flow
- If no valid JWT: The app redirects to /login.
- Browser is sent to identity-backend’s /authorize endpoint, with client_id, redirect_uri, state, and scope.
Show the Login Page
- identity-backend serves up a login form.
- User enters their credentials (username/password).
Credentials Valid?
- If correct:
  - identity-backend generates a one-time authorization code (stored in authcodes.db).
  - Redirects the browser back to the client’s /callback endpoint, appending the code and state.
- If invalid:
  - Reloads the login form with an error (never leaks details).
Client App Swaps Code for JWT
- The client app immediately POSTs to identity-backend /token with the code, client ID/secret, and redirect URI.
- identity-backend verifies all inputs and deletes the code (single use!).
- Responds with a signed JWT (id_token), describing the user and session.
Store JWT and Proceed
- Client app saves the JWT (usually in session or secure cookie).
- User is redirected to the app’s home page—now authenticated.
On Every Subsequent Action
- Each time the user clicks, uploads, or queries, the JWT is checked.
- If expired/invalid, flow restarts (redirect to login).
- If valid, request proceeds.

Code Behind the Scenes: How Do We Protect the User?

Key Safeguards:

Redirect URI Whitelisting:
We only allow redirects to registered URIs—no phishing or “open redirect” exploits.
State Parameter:
Random string passed in and verified, blocking CSRF attacks.
Password Never Leaves identity-backend:
All credential validation is server-side. Never sent to client app.
Single-Use Authorization Code:
Once a code is swapped for a token, it’s destroyed in the DB.
Replay attacks? Not on this watch.
Short-Lived JWT:
Every id_token has a tight expiration window. Steal it? You get minutes at best.
Signature Checks Everywhere:
All services (including client app) verify every JWT, every time.
If it isn’t signed by identity-backend, it’s worthless.
Session Clean-Up:
On logout, session is wiped. No lingering cookies or session fixation.
Centralized Logging:
Every login, error, and token issue is recorded. If something goes wrong, you’ll know when, where, and why.

Bottom line:
This is industry-standard auth flow—implemented with an eye toward zero trust and zero surprises.
If it passes code review here, you’re set for production, audits, and real-world attacks.

Next: Deep Dive on Service-to-Service JWT Authentication—how your backend proves itself and what makes it bulletproof.

Let’s get tactical—how do your backend services trust each other, and how do you make sure they can’t cheat?
This chapter is all about service-to-service (S2S) JWT authentication: how you create, verify, and rotate trust in a modern, zero-trust platform.

7. Deep Dive: Service-to-Service JWT Authentication

Service Token Creation, Signature, and Verification

How a Service Gets a JWT (the Right Way)

Service Requests a Token
- The backend (e.g., careergpt-backend) needs to talk to another service (logging-backend).
- It makes a POST request to the identity-backend’s /token endpoint, specifying:
  - sub: its own service identity (e.g., "careergpt-backend")
  - aud: the service it wants to call (e.g., "logging-service")
Example:
```
curl -X POST "https://aurorahours.com/identity-backend/token" \
  -H "Content-Type: application/json" \
  -d '{"sub":"careergpt-backend","aud":"logging-service"}'
```
Identity-Backend Issues a JWT
- Checks that sub and aud are allowed (enforced by config).
- Creates a JWT with these claims:
  - iss: who issued the token (the identity-backend itself)
  - sub: who the token is for (the calling service)
  - aud: who this token is valid for (the receiving service)
  - iat/exp: issued-at and expiry time
  - scope (optional)
- Signs the JWT with the shared secret (JWT_SECRET_KEY).
- Returns the JWT in the response.

Service Makes Authenticated Request

Sends the JWT in the Authorization: Bearer header to the target service.

Example:

curl -X POST "https://aurorahours.com/logging-backend/log" \
  -H "Authorization: Bearer <jwt_here>" \
  -H "Content-Type: application/json" \
  -d '{"service":"careergpt","level":"INFO","message":"Automated log"}'

Target Service Verifies the JWT
- Calls /verify on identity-backend (or uses its own secret to decode and check).
- Ensures:
  - Signature is valid (matches secret, signed with HS256)
  - aud matches this service
  - iss matches identity-backend
  - Not expired
- If all pass: request is trusted. Otherwise: 401 Unauthorized.

How Backend Services Prove Trust (and How to Lock It Down)

Every service must present a JWT signed by identity-backend.
No shared “God-mode” tokens—tokens are:
- Short-lived (minutes, not hours)
- Scoped for a specific sender (sub) and recipient (aud)
- Rejected if anything is out of place

How you lock it down:

Only accept requests with valid, unexpired JWTs.
Check aud claim—never trust tokens meant for a different service.
Rotate secrets regularly (see below).
Monitor logs for failed or suspicious authentication attempts.
Make /test-token and /verify only accessible in dev or behind VPN.

When to Expire Tokens, How to Rotate Secrets

Token Expiry: How Short Is Short Enough?

Default: 15 minutes
- Most attacks exploit long-lived tokens.
- If an attacker grabs a JWT, they have a narrow window.
For high-sensitivity APIs? Go shorter (5 min or less).
Long-running jobs? Issue fresh tokens at start, or allow secure refresh flow.

Rotating Secrets: When and How

When:
- At least every 90 days in prod. Immediately if you suspect compromise.
How:
- Store JWT_SECRET_KEY in environment variables/config management—not in code.
- Use config management/CI pipelines to rotate secrets.
- Roll new secrets in all services, deploy, then revoke old ones (double-verification period if needed).
- Log the rotation—so you know when it happened and why.

Summary Table: Security Touchpoints

What	Where	Why
Token creation	`/token` (identity-backend)	Prove who you are
Token validation	every protected endpoint	No token, no service
Signature check	everywhere JWT is accepted	No forgery, no replay
Expiry check	everywhere JWT is accepted	Short window of exposure
Secret rotation	all services + identity-backend	Minimize blast radius

This is how real-world, production-ready S2S trust works.
No shortcuts, no “just for testing” hacks in prod. If every call is checked, every signature is verified, and every token is short-lived, you sleep easy and your auditors nod in approval.

Next up: Testing, Debugging, and Dev-Only Endpoints—how to break it safely and fix it fast.

Absolutely—let’s keep this practical. This chapter is your "how to test and debug in the real world" playbook, straight from the trenches.

8. Testing, Debugging, and Dev-Only Endpoints

Using `/test-token` Safely

The /test-token endpoint is your developer cheat code—meant only for dev/test, never prod.

Purpose:
Instantly mint a valid JWT for any test, script, or manual call. No need for a full login/OIDC dance.
Security:
- Only expose /test-token in local/dev or behind a VPN.
- Lock down or remove before production.
- Never ship with open access—attackers could issue their own tokens.

Example Output:

{
  "token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9..."
}

PowerShell and curl Recipes

Get a Test JWT

PowerShell:

# Request a JWT from /test-token (dev only)
$resp = Invoke-RestMethod -Uri "http://localhost:5002/test-token"
$jwt = $resp.token
$jwt

cURL (one-liner):

curl http://localhost:5002/test-token

Use JWT to Call a Protected Endpoint

PowerShell:

# Use the test JWT to call /verify or another backend
$body = @{ token = $jwt; aud = "logging-service" } | ConvertTo-Json
Invoke-RestMethod -Uri "http://localhost:5002/verify" `
  -Method POST `
  -Headers @{"Content-Type"="application/json"} `
  -Body $body

cURL:

curl -X POST "http://localhost:5002/verify" -H "Content-Type: application/json" -d "{\"token\":\"<jwt_here>\",\"aud\":\"logging-service\"}"

Replace <jwt_here> with the value returned from /test-token.

Use JWT to Write a Log Entry

PowerShell:

$logBody = @{
  service = "careergpt"
  level   = "INFO"
  message = "Test log from PowerShell"
} | ConvertTo-Json
Invoke-RestMethod -Uri "http://localhost:5003/log" `
  -Method POST `
  -Headers @{
    "Authorization" = "Bearer $jwt"
    "Content-Type"  = "application/json"
  } `
  -Body $logBody

cURL:

curl -X POST "http://localhost:5003/log" -H "Authorization: Bearer <jwt_here>" -H "Content-Type: application/json" -d '{"service":"careergpt","level":"INFO","message":"Test log from curl"}'

Debugging Tips: Common Pitfalls and Log Output Samples

1. Token Expired

Symptom:
You get a 401 Unauthorized or Token expired error.
Fix:
Always get a fresh JWT before each test. Tokens expire by design.

2. Invalid Signature / Wrong Secret

Symptom:
“Invalid token” or “Signature verification failed.”
Fix:
- Check that all services use exactly the same JWT_SECRET_KEY.
- Restart services after changing secrets.

3. Audience or Issuer Mismatch

Symptom:
“Invalid audience” or “Invalid issuer” errors.
Fix:
- Make sure you use the correct aud in both the JWT and the /verify POST.
- Check that the iss claim matches what’s configured in identity-backend.

4. Using `/test-token` in Production

Symptom:
Your pen tester finds they can mint their own tokens.
Fix:
- Remove or block /test-token in all production deployments.
- Only expose in trusted dev/test environments.

Sample Log Output for Troubleshooting

Successful Token Verification:

INFO API Gateway - [verify_id_token] Token valid for sub=testuser (TokenHash=abcd1234), checked in 2.012s

Token Expired:

ERROR API Gateway - Token expired at 2025-08-03T07:54:07Z, issued at 2025-08-03T07:39:07Z, now=2025-08-03T08:35:27Z (sub=username, TokenHash=abcd1234)
WARNING API Gateway - ID token validation failed: Invalid token: ID token expired

Audience Mismatch:

ERROR Logging Service - [verify_id_token] JWT verification failed: Invalid audience

Signature Verification Failed:

ERROR Logging Service - [verify_id_token] JWT verification failed: Signature verification failed

Key Takeaways:

Always use /test-token responsibly—never in prod.
PowerShell and curl recipes give you instant feedback; automate them in your own test harness.
Use logs—don’t ignore them! They tell you exactly what failed and why.
If you hit a wall, check secrets, audience, issuer, and token age first. Those are 99% of real-world issues.

Next up: Logging, Monitoring, and Observability—see how everything you do gets tracked, and how that saves you when things go sideways.

Great catch—let’s fill in the Logging, Monitoring, and Observability chapter. This is your insurance policy, your accountability tool, and your “find the root cause before your boss asks” toolkit.

8b. Logging, Monitoring, and Observability

Why It Matters

Logs aren’t for decoration. In regulated environments or anytime real money’s on the line, your logs are your first and last line of defense.
If you can’t answer, “Who did what, when, and with what rights?”—you’re flying blind.

Good logging means:

You can reconstruct user and service activity, end-to-end.
You spot attacks, misconfigurations, and business bugs fast.
You can defend yourself in audits, post-mortems, and customer escalations.

How Echo Tracks Everything

Centralized Logging Service

Every service in the Echo stack (api_gateway, parser-backend, worker-backend, etc.) sends logs to the logging-backend.
No direct writes to local files for anything critical.
All meaningful events go through logging-backend, signed with a JWT for provenance.

Types of Events Captured

Auth Events:
- Logins, logouts, failed logins, token issues.
API Actions:
- Uploads, downloads, queries, and results.
Security Events:
- Invalid tokens, access denied, suspicious activity.
System Events:
- Errors, performance metrics, background job status.

JWT-Protected Logging

Every log write is an authenticated API call:

api_gateway POSTs to /log on logging-backend with a valid JWT.
The log entry includes:
- Service name, log level, message, structured context (user, session, trace ID, etc.)

Example log entry:

{
  "service": "api_gateway",
  "level": "INFO",
  "message": "User login successful",
  "context": {
    "sub": "saad",
    "ip": "1.2.3.4",
    "ua": "Mozilla/5.0",
    "trace_id": "abc123"
  },
  "timestamp": "2025-08-03T08:35:27Z"
}

Querying and Observing Logs

Logs are accessible (to admins only) via protected endpoints—e.g., /logs or /logs.json in your client app.
You can filter by user, action, date, service, or error code.
This makes root cause analysis and compliance audits straightforward—no more grep’ing server logs or chasing CSVs.

Sample: Code-Level Logging

from log_utils import unified_log

unified_log("INFO", f"User {username} login attempt", context={"ip": request.remote_addr})

unified_log sends structured entries to logging-backend, always with a JWT.
Log output is timestamped, attributed, and tamper-evident.

Real-World Benefits

Catch bugs fast:
You see errors and anomalies as they happen, with full context.
Spot abuse early:
Repeated failures, odd token usage, brute-force attempts jump out in the logs.
Audit ready:
Everything’s timestamped, signed, and attributable.

PlantUML: Logging Flow

@startuml
!theme spacelab
participant "Any Service" as S
participant "logging-backend" as L
participant "identity-backend" as I

S -> I : Request JWT (if needed)
S -> L : POST /log { data }, Authorization: Bearer <JWT>
L -> I : Verify JWT (optional)
L -> L : Store log (if valid JWT)
L -> S : 200 OK (or 401 if rejected)
@enduml

Bottom line:
If it isn’t logged, it didn’t happen.
Echo’s logging and observability let you sleep at night and win every postmortem.

Next up: Back to Echo Client App—the Gateway Layer and SSO integration flows.

Here’s a concise, senior-level, no-BS guide to the Echo Client App (API Gateway)—why it matters, what it protects, and how the pieces fit.

Part III: Echo Client App—The Gateway Layer

9. Echo Client App: Purpose and Entry Points

What is the API Gateway?

The API Gateway is the single door through which users—and their actions—enter your platform.
It’s your security checkpoint, your UX controller, and your bouncer.
If you care about reliability, observability, and defense-in-depth, you never expose your raw backend services directly.
Everything user-facing goes through this gateway.

It handles:

User sessions (including secure JWT storage and renewal)
SSO handoffs to/from identity-backend
Validation of every user request before it hits the backend
Consistent error handling and auditing
API routing and versioning (no more “spaghetti endpoint” chaos)

Bottom line:
If the API Gateway doesn’t allow it, the rest of your platform never even sees the attempt.

What Does It Protect?

All uploads, queries, and document processing
- No user gets to push a doc or run a query without passing auth.
Logs and audit actions
- User-triggered log access or error reporting? All validated.
Sensitive routes and user state
- Only authenticated users, with the right roles, can touch protected endpoints.
Your backend from attack
- Prevents direct calls, parameter pollution, and session hijack attempts.

This is where you catch attacks before they hit your core.

Mapping Echo Client App Endpoints

Here’s a simple map of what routes the gateway provides (your actual code may have more, but these are core):

Endpoint	Method	Purpose / Notes
`/`	GET	Home/dashboard; redirects to login if not auth’d
`/upload`	GET/POST	Upload docs (protected by JWT/session)
`/documents`	GET	List user’s uploaded/processed docs
`/logs`	GET	View logs; requires valid user/session
`/logs.json`	GET	Download/export logs in JSON (auth required)
`/query`	GET/POST	Submit question/query over documents (auth only)
`/login`	GET	Initiate OIDC login flow with identity-backend
`/callback`	GET	OIDC redirect/callback handler
`/logout`	GET	Clear session, log out

PlantUML: API Gateway Entry Points

@startuml
!theme spacelab
rectangle "API Gateway" {
    /                    : Home/dashboard (GET)
    /upload              : Upload docs (GET/POST)
    /documents           : List documents (GET)
    /logs                : View logs (GET)
    /logs.json           : Export logs (GET)
    /query               : Query over docs (GET/POST)
    /login               : OIDC login (GET)
    /callback            : OIDC callback (GET)
    /logout              : Log out (GET)
}
@enduml

How it fits:

All user traffic starts and ends here.
If you see it in the browser, it’s coming from the gateway—not raw Flask or FastAPI on the backend.
All requests are checked for a valid session/JWT.
- No JWT, no service.
- Expired token? User is bounced to login, every time.
Uploads, queries, and log access are always tied to user identity.
- If the JWT is missing, expired, or forged: request is rejected.

Summary:
Your API Gateway is your moat and your castle gate.
Get this layer right and you massively reduce your attack surface—and your headaches down the road.

Next up: SSO Integration—exactly how the client app initiates login, validates identity, and manages sessions (with code and diagrams).

You got it—this is the “real code, real SSO” chapter, written for engineers who want both the how and the why.

10. SSO Integration: Walking Through Login

How Echo Triggers and Validates Login via OIDC

Here’s the play-by-play for browser SSO, Echo style:

1. User Tries to Access the App

The user opens http://localhost:5000.
The API Gateway (client app) checks: “Do I have a valid JWT session?”
- No? → Redirect to /login
- Yes? → Proceed as normal

Code Sample (API Gateway, Flask-style):

@app.route("/")
def home():
    if not session.get("id_token"):
        return redirect(url_for("login"))
    # ...show main app page

2. Gateway Initiates OIDC Login

Gateway redirects to identity-backend’s /authorize, sending:
- client_id, redirect_uri, response_type=code, scope=openid, state=random-nonce

Code Sample:

@app.route("/login")
def login():
    state = str(uuid.uuid4())
    params = {
        "client_id": CLIENT_ID,
        "redirect_uri": REDIRECT_URI,
        "response_type": "code",
        "scope": "openid",
        "state": state
    }
    session["state"] = state
    return redirect(f"{IDP_BASE_URL}/authorize?{urlencode(params)}")

3. User Sees Login Form and Authenticates

User hits /authorize on identity-backend, logs in.
If success: redirected back to /callback?code=...&state=...
If failure: login page reloads with error

4. Gateway Handles Callback

Checks if returned state matches what was stored in the session (prevents CSRF).
Exchanges code for a JWT by POSTing to /token on identity-backend.

Code Sample:

@app.route("/callback")
def callback():
    code = request.args.get("code")
    state = request.args.get("state")
    if state != session.get("state"):
        abort(400, "CSRF detected")
    token_resp = requests.post(
        f"{IDP_BASE_URL}/token",
        data={
            "code": code,
            "client_id": CLIENT_ID,
            "client_secret": CLIENT_SECRET,
            "redirect_uri": REDIRECT_URI
        }
    )
    id_token = token_resp.json().get("id_token")
    session["id_token"] = id_token
    return redirect(url_for("home"))

5. Session Storage and JWT Cookies

The client app stores the id_token in the session (server-side or cookie-based, depending on your setup).
For every subsequent protected request, the session (or a secure cookie) carries the JWT.
Backend validates JWT before allowing any access.

Tip:
Never store JWTs in localStorage—use secure, HTTP-only cookies or encrypted server-side session.

6. Using JWT for Authenticated Requests

Every user action is protected:
- On every request, check the JWT’s validity/expiration.
- If expired, bounce user back to /login to reauthenticate.

Sample:

def require_auth(func):
    @wraps(func)
    def wrapper(*args, **kwargs):
        id_token = session.get("id_token")
        if not id_token or not verify_jwt(id_token):
            return redirect(url_for("login"))
        return func(*args, **kwargs)
    return wrapper

7. Logging Out

User clicks “Logout.”
Session/cookies are cleared.
User is redirected to /login.

Sample:

@app.route("/logout")
def logout():
    session.clear()
    return redirect(url_for("login"))

Recap: Security Touchpoints

State: Prevents CSRF in OIDC callback
Short-lived Auth Codes: No replay or session fixation
JWT Signature: Always checked on every user action
Session Cleanup: Kills all lingering credentials at logout
Logs Everything: Auth events and errors get written to logging-backend

That’s real, standards-based SSO, Echo-style.
You never trust blindly, you always log, and you don’t reinvent the wheel.
Copy, tweak, and extend these code snippets for any modern Python (or even JS/Go/Java) gateway.

Next: How Queries, Uploads, and Data Flow—protecting your core functionality end-to-end, with JWT and logs at every step.

Let’s get right to the heart of secure API usage: passing identity, verifying it, and knowing how it fails. This is where “microservices” can go very right…or very wrong.

11. Secure API Patterns

How the Client App Forwards User Identity to Backend APIs

Pattern:

The client app (API Gateway) never just “trusts” that the user is authenticated.
For every protected request, it attaches the user’s JWT (from session/cookie) to the backend API call.

Example:

# In your Flask/FastAPI API Gateway route
id_token = session.get("id_token")
headers = {"Authorization": f"Bearer {id_token}"}
resp = requests.post(
    f"{BACKEND_URL}/upload",
    headers=headers,
    files={"file": file_to_upload}
)

The backend (parser-backend, logging-backend, etc.) must check and validate this JWT before doing anything.
If token is missing, expired, or invalid? 401. No service.

Service-to-Service Calls: Authenticating as a System (Not a User)

Pattern:

When worker-backend needs to talk to logging-backend, or parser-backend needs to trigger a log, it doesn’t use a user JWT—it authenticates as itself.

Flow:

Service requests a JWT from identity-backend’s /token, using its service identity (sub) and the intended target (aud).
Service calls target, attaching the JWT as a Bearer token in the header.

Example:

# Worker-backend gets a JWT for logging-service
resp = requests.post(
    "https://aurorahours.com/identity-backend/token",
    json={"sub": "worker-backend", "aud": "logging-service"}
)
service_token = resp.json().get("token")

# Use JWT to log
headers = {"Authorization": f"Bearer {service_token}"}
log_resp = requests.post(
    "https://aurorahours.com/logging-backend/log",
    headers=headers,
    json={"service": "worker-backend", "level": "INFO", "message": "Background job started"}
)

The logging-backend checks:
- Signature (was this JWT signed by identity-backend?)
- Audience (aud claim is "logging-service")
- Not expired
- Subject is allowed

What a Failed or Expired Token Looks Like

Symptoms in Code:

You call an API, get 401 Unauthorized.

Or, you get a JSON response like:

{"valid": false, "error": "Token expired"}

Or, for an invalid signature or bad audience:

{"valid": false, "error": "Signature verification failed"}

Log output:

ERROR API Gateway - [verify_id_token] JWT verification failed: Token expired
WARNING API Gateway - ID token validation failed: Invalid token: ID token expired

What’s really happening:

If you see a 401, first check:
- Did your code actually send the JWT as a Bearer token?
- Is the token expired (iat/exp claims)?
- Is the signature valid and using the right secret?
- Does the audience (aud) claim match the backend?

Key Security Takeaways

Never forward a user request without a JWT, ever.
Backends must verify every token, every call.
Service-to-service calls get their own JWTs—never “pretend” to be a user.
All failures are logged and return 401—not stack traces or secrets.

This is how you prevent impersonation, session theft, and a thousand “it worked on my machine” bugs.
No JWT, no service. No shortcuts, no surprises.

Next up: Protecting Uploads, Queries, and Logs—keeping your platform’s most sensitive functions bulletproof, end-to-end.

Absolutely—let’s cover how Echo’s logs are bulletproof, queryable, and your safety net when things break or get weird.

12. Logging, Monitoring, and Observability

How Logs Flow From All Services to logging-backend

The Pattern:

Every microservice—API Gateway, parser, worker, identity—never logs locally for anything important.
Instead, each sends a POST to logging-backend’s /log endpoint.
Every log entry is signed with a JWT. No JWT, no log.

Visual:

@startuml
!theme spacelab
participant "API Gateway" as G
participant "logging-backend" as L
participant "identity-backend" as I

G -> I : Get JWT for logging-service (if needed)
G -> L : POST /log { log data }, Authorization: Bearer <JWT>
L -> I : (optional) Verify JWT signature/claims
L -> L : Store log if valid
L -> G : 200 OK (or 401 Unauthorized)
@enduml

How JWT Auth is Enforced in Log Ingestion

Example: /log endpoint (logging-backend):

@app.route("/log", methods=["POST"])
def log():
    auth = request.headers.get("Authorization", "")
    if not auth.startswith("Bearer "):
        return "Missing or invalid auth", 401

    token = auth[len("Bearer "):]
    try:
        claims = jwt.decode(
            token,
            JWT_SECRET_KEY,
            algorithms=["HS256"],
            audience="logging-service",
            issuer=JWT_ISSUER
        )
    except Exception as e:
        return jsonify({"valid": False, "error": str(e)}), 401

    # Parse log payload, enrich with claims and metadata
    # Store log in database
    return jsonify({"ok": True})

Key Points:

Only requests with a valid JWT (correct signature, audience, issuer, unexpired) are accepted.
Every log entry is traceable: you know which service, when, with what claims.
Failed verifications (expired, wrong audience, bad signature) are themselves logged and monitored.

Examples: Troubleshooting User and System Actions

1. User Can’t Log In

Steps:

Search logs for failed login attempts, by username/IP.
See if the error is “invalid password,” “account locked,” or a system error.
Check for brute-force attempts (rate limiting, lockout triggered).

Sample Log:

{
  "service": "identity-backend",
  "level": "WARN",
  "message": "Login failed for username=saad, client_id=browser-ui",
  "context": { "ip": "123.45.67.8", "ua": "Mozilla/5.0" },
  "timestamp": "2025-08-03T09:10:11Z"
}

2. API Call Failing With 401

Search logs by trace_id, user, or endpoint.
Look for “Token expired,” “Signature verification failed,” or “audience mismatch.”
Cross-reference the token’s iat/exp fields and user’s login times.

Sample Log:

ERROR logging-backend - [verify_id_token] JWT verification failed: Token expired (sub=worker-backend, aud=logging-service)

3. Suspicious or Abusive Behavior

Search for spikes in failed logins, or logs from unusual geolocations.
Cross-reference logs across services: did the same IP try to upload, query, or log out a dozen times in a minute?
Proactively alert on anomalies using your favorite monitoring stack (ELK, Datadog, etc.)

Best Practices

Never log sensitive data (passwords, raw tokens).
Log enough context (user, IP, UA, session, trace_id) for every security-relevant event.
Automate alerts for repeated failures, suspicious bursts, or errors in log ingestion.

Why This Works

Single source of truth—every service logs to the same, verifiable location.
Defense-in-depth—log writes are themselves authenticated, not just “open for POSTs.”
Forensics ready—every incident can be traced across services and users, fast.

This is modern observability, not just for audits but for your own sanity.
When (not if) something breaks, you want this in place.

Next up: Protecting Uploads, Queries, and Sensitive Data—keeping your platform’s business logic as tight as your auth.

Here’s a no-nonsense, practical chapter on security reviews.
If you follow this, you avoid 95% of real-world breaches and never look like an amateur in front of auditors or senior engineers.

13. Reviewing for Security and Robustness

Security Review Checklist

Environment: Development vs. Production

Always distinguish:

What’s okay for dev/test is never okay for *prod.

Area	Dev/Test	Production (MUST)
JWT secret	Hardcoded/test value	Strong, random, ENV ONLY
`/test-token` endpoint	Enabled	DISABLED/blocked
Logging	Verbose, may log more details	No sensitive info, redact
Debug error pages	Allowed	DISABLED
Allowed redirect URIs	Wildcard/dev hosts	Strict, pre-approved only
MFA/2FA	Optional	STRONGLY recommended

General Security Review (Before Every Release)

Common Mistakes in Auth Code (and How to Spot/Fix Them)

1. Accepting tokens without verifying signature, aud, or exp

How to spot:
- No explicit call to jwt.decode(..., verify_signature=True, audience=..., issuer=...).
Fix:
- Always enforce all claims, never just decode and trust.

2. Using long-lived or reusable OAuth codes/tokens

How to spot:
- Auth codes aren’t deleted after use.
- Tokens live hours or days by default.
Fix:
- Delete auth codes instantly after exchange.
- Set short token expiry (15 minutes or less).

3. Storing secrets in code or repo

How to spot:
- JWT_SECRET_KEY = "something" in Python, or visible in config files in Git.
Fix:
- Use ENV variables (os.environ["JWT_SECRET_KEY"]).
- Rotate secrets and remove them from commit history.

4. Open redirect or “wide open” redirect URIs

How to spot:
- Any code that allows user-provided redirect URI, or uses wildcards.
Fix:
- Only allow pre-approved, exact-match URIs.

5. Overly verbose error messages

How to spot:
- Server returns stack traces, sensitive context, or tells attacker too much (“user does not exist” vs. “invalid credentials”).
Fix:
- Generic error messages to users, details only in logs.

6. Logging sensitive info

How to spot:
- Passwords, tokens, or secrets appear in logs.
Fix:
- Scrub all sensitive values before logging.

7. No session cleanup on logout

How to spot:
- Session cookies or server-side session survive after logout.
Fix:
- session.clear() or equivalent, invalidate cookies.

Protecting Secrets & Securing Environment Variables

Never hardcode secrets in code.
Store secrets in environment variables (with os.getenv or equivalent).
Restrict ENV file access—readable only by the app/service, not other users.
Automate secret rotation—don’t wait for a breach.
Audit your ENV and deployment configs regularly.

Example:

import os
JWT_SECRET_KEY = os.environ.get("JWT_SECRET_KEY")
if not JWT_SECRET_KEY:
    raise Exception("JWT_SECRET_KEY not set in environment!")

Never log environment variable values.
Use secrets management (AWS Secrets Manager, Hashicorp Vault, Azure Key Vault) if you scale beyond side projects.

Principal Engineer’s Final Word:

Ship with “prod paranoia.”
Assume every endpoint, secret, and log will be poked by someone smarter than you.
Get these basics right, and your system is resilient, trustworthy, and ready for real money and real users.

Next: Checklist for shipping and scaling—what to automate, what to review, and how to keep your system bulletproof as it grows.

Absolutely—here’s a straight-to-the-point, principal-engineer-level guide to DevOps and deployment for a modern microservices authentication platform.

14. DevOps and Deployment

How to Configure, Deploy, and Rotate Secrets

1. Secrets Management

All secrets must be environment variables, never in code or source control.
Store in .env files (for dev), secure CI/CD secrets (for prod), or dedicated secrets managers.
On cPanel or cloud hosts, set them in your app’s config dashboard or via CLI/SSH.

Core secrets include:

JWT_SECRET_KEY (shared by identity and all backend services)
JWT_ISSUER
Client secrets (e.g., BROWSER_UI_CLIENT_SECRET)

Example .env:

JWT_SECRET_KEY=prod-random-hex-key
JWT_ISSUER=https://aurorahours.com/identity-backend
JWT_EXPIRATION_MINUTES=15
BROWSER_UI_CLIENT_SECRET=browser-ui-prod-secret

Deploy steps:

Never commit .env to git (.gitignore it).
Upload .env/set ENV via your deploy UI or pipeline.
Always restart/redeploy after changing secrets.

2. Secret Rotation

Plan to rotate secrets every 90 days (minimum), or instantly if leaked.
Use a staged rollout:
- Deploy new secret to all services (allow old+new during a brief overlap).
- Cut over—accept only new secret, remove old everywhere.
Audit logs before/after rotation for unauthorized attempts.

Release/Versioning Practices for Identity and Client Services

1. Semantic Versioning

Use SemVer: MAJOR.MINOR.PATCH (e.g., v1.2.3)
- Increment MAJOR for breaking changes, MINOR for features, PATCH for fixes.
Tag every release in git:
```
git tag v1.2.3
git push origin v1.2.3
```

2. Coordinated Release

Never deploy a new identity-backend without syncing all dependent services.
For breaking changes (e.g., JWT claims, auth logic), release all affected repos together.
Update changelogs/readmes on each release.

Checklist:

Update code and config in all services.
Tag matching release across identity-backend, logging-backend, etc.
Deploy together, monitor logs.
Roll back all if you roll back one (never leave versions mismatched).

Using PlantUML and Diagrams as Living Documentation

1. PlantUML for System, Flow, and API Diagrams

Every key workflow or system should have a PlantUML .puml source file in /docs/architecture/.
Always update PlantUML when flows or endpoints change—don’t let diagrams rot.
Use PlantUML CLI or VSCode plugin to export fresh PNGs for your README and docs.

Example File Structure:

/docs/architecture/
  identity-overview.puml
  sso-sequence.puml
  s2s-auth-sequence.puml
  log-ingestion-sequence.puml
  ...

Include both the PNG and the .puml in repo; README links to PNG, but contributors edit .puml.

2. Documentation as Code

Document code, flows, and secrets config in Markdown + diagrams, not Google Docs.
Reference diagram images in README with collapsible PlantUML source:

![SSO Sequence](docs/architecture/sso-sequence.png)
<details>
<summary>PlantUML Source</summary>

```plantuml
@startuml
actor User
...
@enduml

Update the README with every release—your future self (and your team) will thank you.

Principal Engineer’s Pro Tips

Automate: Use CI/CD to lint, test, and deploy; verify secrets are loaded and diagrams are current.
Enforce .env policies: Scripts should refuse to start if secrets are missing.
Audit often: Scan your git history for accidental secret leaks.
Live diagrams = living system: Update diagrams as code changes; treat as part of the product.

Bottom Line:
If you treat secrets, versioning, and diagrams as code, you’re always audit-ready and new engineers ramp up in hours—not weeks.

Next: Your shipping checklist and how to keep scaling without tripping over your own feet.

Let’s close with a roadmap for growing Echo beyond “just works” MVP—straight to enterprise features and real-world scale.

15. Beyond the MVP: Extending Echo

Adding RBAC (Role-Based Access Control), Multi-Factor, or SAML

RBAC (Role-Based Access Control)

Why? Not every user gets the same powers—separate “admin,” “user,” “auditor,” etc.
How?
- Store roles/permissions in your identity-backend’s user DB or claims.
- Add roles or permissions as claims in the JWT.
- Backend checks roles/permissions before serving sensitive endpoints.

Sample JWT:

{
  "sub": "saad",
  "roles": ["admin", "editor"],
  "exp": 1754217643
}

Code Snippet:

def require_role(role):
    def wrapper(fn):
        @wraps(fn)
        def inner(*args, **kwargs):
            claims = decode_jwt(session["id_token"])
            if role not in claims.get("roles", []):
                abort(403)
            return fn(*args, **kwargs)
        return inner
    return wrapper

Multi-Factor Authentication (MFA/2FA)

Why? Even if a password is stolen, attackers can’t log in.
How?
- After initial password, send a code via SMS, email, or authenticator app.
- Only issue auth code/JWT after 2FA step passes.
- Store “MFA completed” flag in session during login.
Resources:
PyOTP for TOTP, Duo Security, Authy

SAML (Security Assertion Markup Language)

Why? Integrate with enterprise/legacy SSO providers.
How?
- Use python3-saml or djangosaml2.
- Map SAML assertions to your own JWT/session.

Pro tip:
OIDC is easier for greenfield, but SAML is unavoidable for enterprise/legacy customers.

Scaling to More Services or Federated Identity

More Services

Add new services to the trusted set—update ALLOWED_CLIENTS, client secrets, and audience configs.
Use service discovery or config management to roll out changes safely.
Enforce principle of least privilege—each service gets its own JWT, only for what it needs.

Federated Identity

Support logins from Google, Microsoft, Okta, etc. via OIDC/SAML federation.
Your identity-backend brokers trust—users log in via Google, but your system issues JWTs scoped to your platform.
Resources:
Authlib for OIDC federation, python-social-auth

Where to Learn More

JWT, OAuth2, OIDC:
Best Practices:
- OWASP Authentication Cheat Sheet
- OWASP Top 10
Books:
- OAuth 2 in Action (Richer & Sanso)
- Securing DevOps (Julien Vehent)
- Designing Data-Intensive Applications (Martin Kleppmann) – for scaling ideas
Community:
- r/webdev and r/cscareerquestions for peer advice.
- Stack Overflow for tactical issues.

You made it past MVP—now build something enterprise-grade, auditable, and future-proof.
Security, scale, and a healthy dose of paranoia will take you the rest of the way.

Here’s a professional, detail-packed Appendices section for your code review manual/book—ready to use as reference, copy-paste, or hand to a team.

16. Appendices

A. PlantUML Source for All Key Diagrams

@startuml
!theme spacelab
rectangle "identity-backend API" {
    /authorize : GET - OIDC start
    /login : POST - Login form POST
    /token : POST - OAuth2 code exchange for JWT
    /verify : POST - Validate JWT (S2S)
    /test-token : GET - Dev: issue JWT for testing
    /ping : GET - Health
    /.well-known/openid-configuration : OIDC metadata
    /logout : GET - Clear session
}
@enduml

@startuml
actor User as U
participant "Browser (Client App)\n(API Gateway)" as C
participant "Identity Service\n(identity-backend)" as I

== User tries to access protected resource ==

U -> C : GET http://localhost:5000/
C -> C : Check session for JWT
alt No valid JWT
    C -> C : Redirect to /login
    C -> I : GET /authorize?client_id=...&redirect_uri=...&state=...
    I -> U : Show login form
    U -> I : Submit username/password
    I -> I : Validate credentials
    alt Success
        I -> C : Redirect to /callback?code=...&state=...
        C -> I : POST /token {code, client_id, client_secret, redirect_uri}
        I -> C : Return {id_token (JWT)}
        C -> C : Store JWT in session
        C -> U : Redirect to home page
    else Failure
        I -> U : Show error (login failed)
    end
else Valid JWT
    C -> U : Render home page
end

== On each subsequent user request ==

U -> C : Any action (upload, query)
C -> C : Check JWT in session
C -> C : If expired/invalid, redirect to /login
C -> U : Serve request if valid JWT

@enduml

@startuml
participant "Worker Service" as W
participant "Logging Service" as L

W -> W : Create JWT (sign with shared secret)\nInclude: iss, aud, exp, etc.
W -> L : POST /log { log data }, Authorization: Bearer <JWT>
L -> L : Verify JWT signature, claims, expiry
alt Valid JWT
    L -> L : Process log, store in DB
    L -> W : 200 OK
else Invalid JWT
    L -> W : 401 Unauthorized
end
@enduml

@startuml
!theme spacelab
participant "Any Service" as S
participant "logging-backend" as L
participant "identity-backend" as I

S -> I : Request JWT (if needed)
S -> L : POST /log { data }, Authorization: Bearer <JWT>
L -> I : Verify JWT (optional)
L -> L : Store log (if valid JWT)
L -> S : 200 OK (or 401 if rejected)
@enduml

B. Example Environment/Config Files

.env for identity-backend:

JWT_SECRET_KEY=replace-with-random-prod-key
JWT_ISSUER=https://aurorahours.com/identity-backend
JWT_EXPIRATION_MINUTES=15
BROWSER_UI_CLIENT_SECRET=browser-ui-secret

Sample PowerShell snippet to load env:

$env:JWT_SECRET_KEY = "replace-with-random-prod-key"
$env:JWT_ISSUER = "https://aurorahours.com/identity-backend"
$env:JWT_EXPIRATION_MINUTES = "15"
$env:BROWSER_UI_CLIENT_SECRET = "browser-ui-secret"

C. PowerShell & curl Recipes for Every Endpoint

/test-token

$resp = Invoke-RestMethod -Uri "http://localhost:5002/test-token"
$jwt = $resp.token
$jwt

curl http://localhost:5002/test-token

/verify

$body = @{ token = $jwt; aud = "logging-service" } | ConvertTo-Json
Invoke-RestMethod -Uri "http://localhost:5002/verify" `
  -Method POST `
  -Headers @{"Content-Type" = "application/json"} `
  -Body $body

curl -X POST "http://localhost:5002/verify" -H "Content-Type: application/json" -d "{\"token\":\"<jwt_here>\",\"aud\":\"logging-service\"}"

/token

$body = @{
  sub = "careergpt-backend"
  aud = "logging-service"
} | ConvertTo-Json
Invoke-RestMethod -Uri "http://localhost:5002/token" `
  -Method POST `
  -Headers @{"Content-Type"="application/json"} `
  -Body $body

curl -X POST "http://localhost:5002/token" \
  -H "Content-Type: application/json" \
  -d '{"sub":"careergpt-backend","aud":"logging-service"}'

/ping

Invoke-RestMethod -Uri "http://localhost:5002/ping"

curl http://localhost:5002/ping

OIDC Login Example (/authorize, /login, /callback, /logout)

Handled by browser redirects, but you can automate with browser tools (Selenium, Playwright) or test with Postman.

D. Glossary

AuthN: Authentication. Proving who you are.
AuthZ: Authorization. What you’re allowed to do.
JWT: JSON Web Token. A signed, compact, self-contained credential.
OIDC: OpenID Connect. Auth standard built on OAuth2, designed for user SSO.
OAuth2: Protocol for delegated authorization (with/without user identity).
SSO: Single Sign-On. One login for many services/apps.
RBAC: Role-Based Access Control. Assigns permissions by user role.
Service-to-Service Auth: Machines proving identity to other machines, using signed tokens.
Claim: A piece of info in a JWT (e.g., sub, aud, exp, scope).
aud: Audience. The service/resource this token is meant for.
iss: Issuer. Who issued this token.
exp: Expiry timestamp.
CSRF: Cross-Site Request Forgery. Attack where unwanted actions are performed on behalf of an authenticated user.
PlantUML: A language/tool for describing diagrams as code.
Environment Variable: Config value loaded outside code, used for secrets/settings.

Use this appendix for troubleshooting, onboarding new devs, or as your own “what’s the curl command for this endpoint?” cheat sheet.

You’ve now got a principal engineer’s field manual for Echo, start to finish. Time to ship. 🚀

Feature: OneLogin page

1. What you’ve implemented — High Level (MVP):

A. OAuth2 Authorization Code Flow (for browser-based login)

B. JWT Service-to-Service & User Token

C. Database

D. Logging

E. Config & Secrets

F. CORS, XSS, CSRF

2. MVP Security: What’s Acceptable

3. What’s NOT Secure for Production (Needs Attention Soon)

A. Hardcoded credentials

B. Secrets in Code

C. No HTTPS Enforcement (in code)

D. Weak Redirect URI Check

E. No CSRF/XSRF Protection

F. Session Storage

G. Audit Logging

H. Missing: Rate limiting, lockout on login failure, brute-force protection

I. JWT Key Rotation

J. Error Handling/Info Leaks

4. What Looks Professional / You Won’t Look Like an Idiot

5. Summary Table

6. Bottom Line for MVP Demo

🚀 How I’d Walk You Through This Codebase (Principal Engineer Mode)

1. High-Level: What Are We Building?

2. The Components (Services) and What Each Does

A. Identity Backend

B. API Gateway (a.k.a. UI/Web App)

C. Worker

D. Parser Service

E. Logging Service

3. Request/Flow Example: User Upload to RAG Query

4. Security & Auth—How it Fits Together

5. Why Is This a Good Foundation?

6. Common Gotchas or “Mentor Mode” Notes

7. If You Want to Level Up

8. TL;DR: The “Elevator Pitch”

9. “Baby Steps” to See it All Work

1. What Does identity-backend Do?

2. Who Actually Authorizes?

3. What About Fine-Grained Authorization?

4. Is This Good?

5. What If I Want Central Real-Time Authorization?

Summary Table

Bottom Line

Your OIDC Flow: "Authorization Code Flow" (with PKCE optional for public clients)

How it Works (Your MVP):

Other OAuth2 / OIDC Flows (Just the Names)

What We Did

What Broke, and How You Fixed It

What Worked (Now):

Next Steps / Suggestions

TL;DR

Full Example: OIDC Flask Client for Auth Code Flow

Review of Your Setup

1. config.py

2. .env (should look like)

3. login.html

Review: Security and Real-World Constraints

Why is there a "client secret" if browser code can read it?

Next Steps

Let me know when you’re ready to proceed with the client changes and I’ll write the code for you!

Book Outline: Echo Platform Code Review Manual

Part I: Foundations & Philosophy

1. Welcome to Echo: The Big Picture

2. Modern Authentication and Authorization

3. Architecture at a Glance

Part II: Identity-Backend—Our Trust Anchor

4. Identity-Backend: Purpose and Core Concepts

5. Code Walkthrough: Endpoints and Flows

6. Deep Dive: OAuth2 Authorization Code Flow (OIDC)

7. Deep Dive: Service-to-Service JWT Authentication

8. Testing, Debugging, and Dev-Only Endpoints

Part III: Echo Client App—The Gateway Layer

9. Echo Client App: Purpose and Entry Points

10. SSO Integration: Walking Through Login

11. Secure API Patterns

12. Logging, Monitoring, and Observability

Part IV: Security, Best Practices, and Next Steps

13. Reviewing for Security and Robustness

**1. What Does identity-backend Do?**

1. `config.py`

2. `.env` (should look like)

3. `login.html`

Database: `authcodes.db` and Token Lifecycle

What is `authcodes.db`?

Endpoint: `/authorize` (GET) — OIDC Start

Endpoint: `/login` (POST) — Login Form Handler

Endpoint: `/token` (POST) — Exchange Code for JWT

Endpoint: `/verify` (POST) — Validate a JWT (S2S)

Endpoint: `/test-token` (GET) — Dev-Only JWT Issuer

Endpoint: `/ping` (GET) — Health Check

Endpoint: `/logout` (GET) — Clear Session

Using `/test-token` Safely

4. Using `/test-token` in Production
